Diagonal flow fan
Recommendation index：
Product description
The Air pressure of the diagonal flow fan is higher than that of axial flow fan and the air volume is larger than centrifugal fan. The diagonal flow fan is fit for the medium conditions neither too big not too small. It can be installed easily.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) It is with all advantages of axial flow fan and centrifugal fan.
Certifications

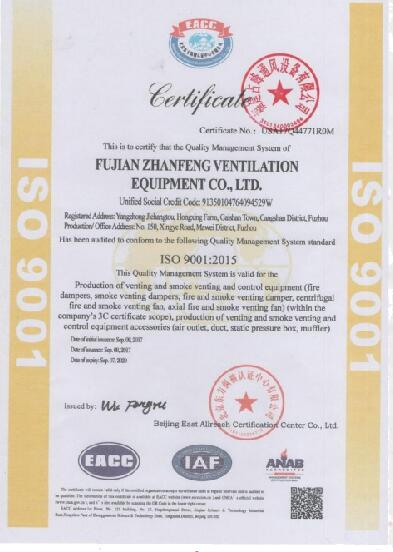

（1）ISO9001

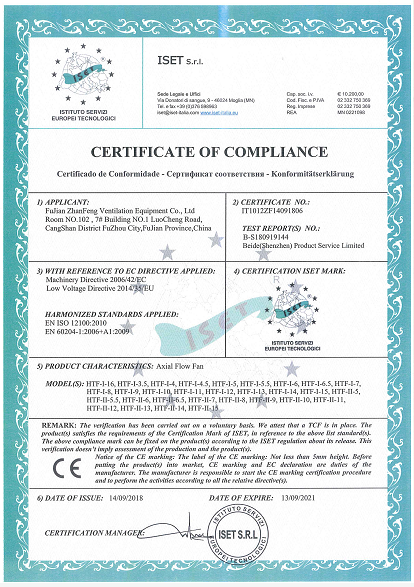

(2) CE

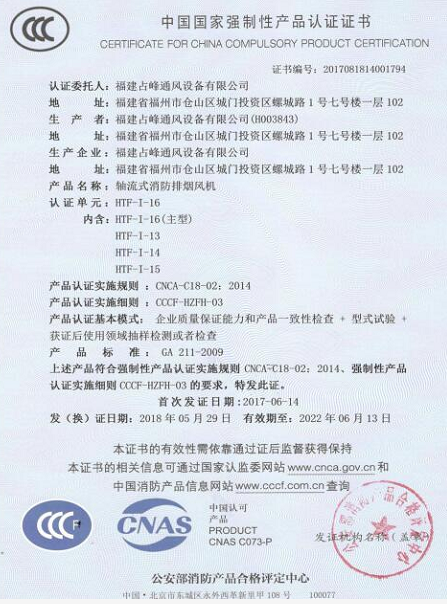

(3) CCC
Specifications and Parameters
Series SWF-I Diagonal flow fan
Machine Number | Power(KW) | REV（r/min) | Air Volume （m3/h) | pressure （Pa) | Noise (A) |
| 2.5 | 0.75 | 2900 | 1532-2664 | 634-358 | 72 |
| 0.18 | 1450 | 743-1362 | 166-96 | 64 | |
| 0.09 | 960 | 492-902 | 98-54 | 58 | |
| 3 | 2.2 | 2900 | 3212-4652 | 883-512 | 73 |
| 0.25 | 1450 | 1606-2312 | 236-121 | 66 | |
| 0.12 | 960 | 1000-2312 | 139-67 | 60 | |
| 3.5 | 3 | 2900 | 4127-5745 | 986-564 | 74 |
| 0.25 | 1450 | 2130-3320 | 257-125 | 68 | |
| 0.18 | 960 | 1234-1938 | 146-76 | 62 | |
| 4 | 4 | 2900 | 5242-7228 | 1248-654 | 78 |
| 0.37 | 1450 | 2765-4512 | 285-128 | 71 | |
| 0.25 | 960 | 1743-2642 | 156-86 | 64 | |
| 4.5 | 5.5 | 2900 | 7124-9169 | 1298-672 | 80 |
| 0.55 | 1450 | 3160-4728 | 306-182 | 73 | |
| 0.25 | 960 | 2240-3592 | 162-88 | 66 | |
| 5 | 5.5 | 2900 | 9876-13110 | 1316-801 | 83 |
| 1.1 | 1450 | 4896-8652 | 382-196 | 77 | |
| 0.37 | 960 | 3215-5624 | 182-96 | 68 | |
| 5.5 | 7.5 | 2900 | 12264-16820 | 1338-824 | 84 |
| 1.5 | 1450 | 6925-9126 | 385-258 | 78 | |
| 0.55 | 960 | 4265-6532 | 206-119 | 69 | |
| 6 | 7.5 | 2900 | 15210-19230 | 1365-836 | 85 |
| 1.5 | 1450 | 7560-11625 | 382-165 | 79 | |
| 0.75 | 960 | 4986-8025 | 236-128 | 70 | |
| 6.5 | 7.5 | 1450 | 18672-25124 | 1038-524 | 82 |
| 2.2 | 1450 | 9424-15064 | 418-282 | 80 | |
| 0.75 | 960 | 7540-10544 | 238-155 | 71 | |
| 7 | 11 | 1450 | 24820-31380 | 1208-608 | 84 |
| 3 | 1450 | 11780-18800 | 470-329 | 81 | |
| 1.1 | 960 | 8246-13820 | 278-186 | 74 | |
| 7.5 | 11 | 1450 | 23422-30627 | 1236-712 | 87 |
| 4 | 1450 | 14136-22538 | 542-378 | 82 | |
| 1.5 | 960 | 9895-15776 | 298-208 | 76 | |
| 8 | 15 | 1450 | 28564-37350 | 1305-809 | 90 |
| 4 | 1450 | 16269-25467 | 516-193 | 82 | |
| 1.5 | 720 | 11528-19185 | 315-116 | 75 | |
| 9 | 18.5 | 1450 | 33579-46138 | 1343-785 | 92 |
| 5.5 | 960 | 22011-34206 | 564-282 | 86 | |
| 2.2 | 720 | 16508-25654 | 327-164 | 78 | |
| 10 | 18.5 | 1450 | 40528-51821 | 1378-792 | 93 |
| 7.5 | 960 | 29902-44054 | 496-288 | 86 | |
| 3 | 720 | 22427-33041 | 288-167 | 78 | |
| 11 | 22 | 1450 | 48177-59521 | 1382-806 | 91 |
| 11 | 960 | 35294-48729 | 516-310 | 86 | |
| 4 | 720 | 26470-36546 | 300-181 | 80 | |
| 12 | 30 | 1450 | 60923-83151 | 1396-865 | 96 |
| 22 | 960 | 55852-71092 | 1308-786 | 95 | |
| 15 | 720 | 47534-64292 | 625-429 | 91 | |
| 13 | 37 | 1450 | 74144-94782 | 1435-870 | 97 |
| 30 | 960 | 68652-87761 | 1329-805 | 95 | |
| 15 | 720 | 51596-71565 | 637-441 | 91 | |
| 14 | 45 | 1450 | 78740-107518 | 1395-916 | 98 |
| 37 | 960 | 72908-99554 | 1292-849 | 96 | |
| 18.5 | 720 | 60883-84446 | 723-494 | 92 |
